R40403-003 Furnace Blower Control Circuit Board,For All 40403-001,40403-002,20054502,ST9120A, B or C Blower Controls，Compatible with Allied, Armstrong, Concord, Ducane, Magic Chef, Magic-Pak Models
4.3 (111 items)
Limited Time SaleUntil the end
23
56
07
US$20.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$14.00
Product details
| Management number | 210110411 | Release Date | 2026/04/02 | List Price | US$14.00 | Model Number | 210110411 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Replace OE Part Number:R40403-003 blower control board replaces all 40403-001, 40403-002, 40403-003, 20054502 and ST9120A, B or C blower controls.
- Details:Operating Line Voltage: 85 to 135 VAC, 50/60Hz. Secondary Control Voltage: 18.0 to 30.0 VAC, 50/60Hz. Maximum Blower Loading: 15FLA, 30LRA, 120 VAC; 7.5FLA, 15LRA, 240 VAC. Maximum Inducer Loading: 3FLA, 10LRA, 120 VAC; 1.5FLA, 5LRA, 240 VAC. Humidifier Terminal: .8A, 115 VAC. Electronic Air Cleaner: .8A, 115 VAC
- Working Principle:R40403-003 blower control provides outputs for a 2 speed indoor blower motor and single speed inducer motor. The Furnace Blower Control Circuit Board receives inputs from the thermostat (W, Y, and G), pressure switch, and high temperature limit switches,provides user selectable blower delays through dip switch settings. The 24 volt circuit of Furnace Blower Control Circuit Board is protected by a 5 amp replaceable automotive type fuse
- Excellent material quality: R40403-003 Furnace Blower Control Circuit Board is made of PCB material, which has good moisture resistance, stable performance and long service life. No additional wiring kit is required so installation process is easier. This Furnace Blower Control Circuit Board works well with both the original wiring and the updated wiring, the connection is very sturdy and operates just like the original
- Packing: 1* Furnace Blower Control Circuit Board

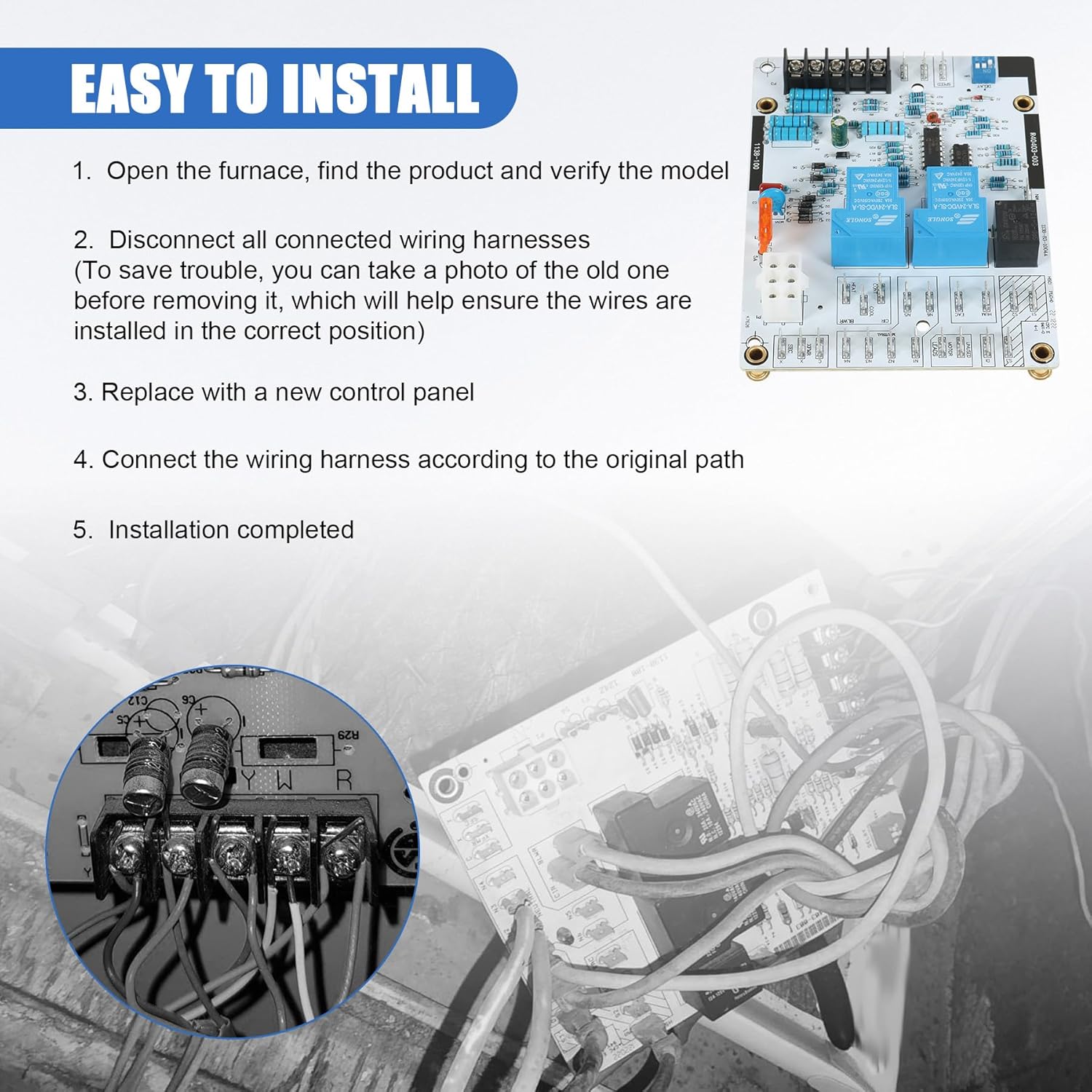

- Attention:To save trouble, you can take a photo of the old one before removing it, which will help ensure the wires are installed in the correct position
| Item Weight | 7.4 ounces |
|---|---|
| Part Number | SMTRUILAN-Y098-FBA |
| Manufacturer | SMTRUILAN |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 6.69 x 5.11 x 1.53 inches |
