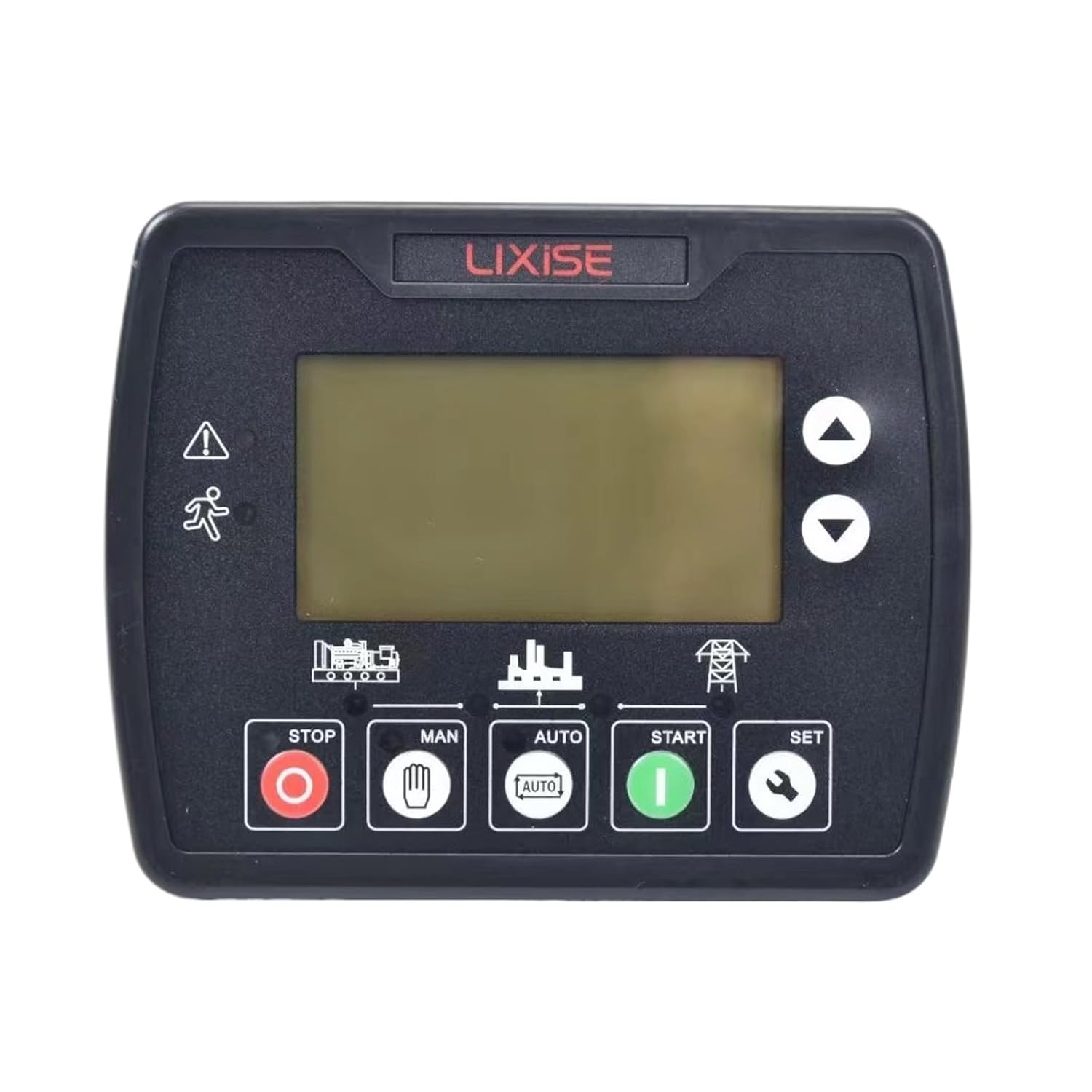

LXC3120 Completely Replaced Genset ATS Controller DSE4520
4.1 (145 items)
Limited Time SaleUS$84.25 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212611236 | Release Date | 2026/04/06 | List Price | US$56.17 | Model Number | 212611236 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electronic Engine ControlThe LXC3120 series power plant automation controller integrates digital, intelligent, and network technologies. The diesel generator set is a single automation and monitoring system, with automatic start stop, data measurement, and alarm of the generator. It has the function of "three remote" (requiring RS485 module). The controller adopts a large display screen, with optional interfaces in Chinese, English, Spanish, and Russian, making the operation simple and reliable. The parameters realize various functions such as precision measurement, setting value adjustment, and threshold setting. All parameters of the controller can be adjusted from the front panel of the controller, and can also be programmed, adjusted, and monitored through USB and RS232 interfaces using PC. Its compact structure, simple wiring, and high reliability can be widely used in various generator automation systems.Main technical parametersWorking voltage: DC8.0V supplied to 35.0VPower consumption: 2W)AC generator voltage input: 15V AC-360 V AC (ph-N)Phase four wire system: 15V AC-360 V AC (ph-N)Two phase three wire system: 15V AC-360 V AC (ph-N)Single phase dual line: 30V AC-620 V AC (pH)Three phase three wireAC generator frequency: 50 Hz/60HzSpeed sensor voltage: 1.0 to 24V (rms)Speed sensor frequency: maximum 10000HzStart relay output: 5A DC28V power outputProgrammable relay output: 1 5A DC28V power outputProgrammable relay output: 2 5A DC28V power outputProgrammable relay output: 3 5A DC28V power outputProgrammable relay output: 4 5A AC250V passive outputProgrammable relay output: 5 5A AC250V passive outputSize: 143mm x 115mm x 41mmAperture: 110mm x 90mmSecondary current rating of current : 5AWorking conditions Temperature: (-25~70) ° C Humidity: (20~93)% RHStorage condition temperature: (-30~+80) ° CProtection level IP55: during installation==========Model Number : LXC3120
- Electronic Engine Control
- LXC3120 Completely Replaced Genset ATS Controller DSE4520
| Model | GMOSAOHXU |
|---|---|
| Brand Name | GMOSAOHXU |
| Part Number | GMOSAOHXU |
| Contact Type | Normally Closed |
| Manufacturer | GMOSAOHXU |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 Amps |
