Davitu DC Motor - Permanent Magnet DC Forward Reverse Motor 12V 24V High Speed 1800RPM 30W In DC Motor Adjustable Speed For Automated Control - (Speed(RPM): 12v 1800rpm)

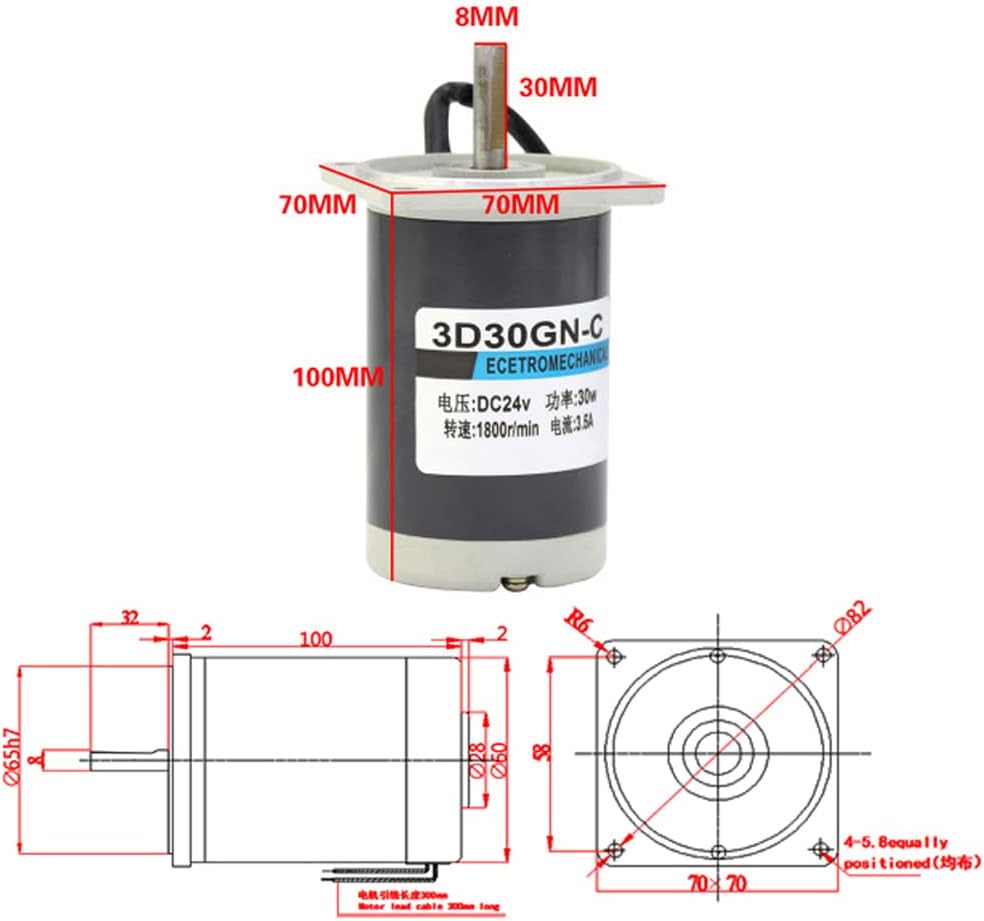

Introduction of the motor1. Name of the motor: DC 12v 24v Micro Permanent Magnet High Speed Motor2. Rated voltage have : DC 12V And DC 24V3. You can choose the no load speed have : 12v 1800rpm or 24v 1800rpmNote 1 : The speed plus and minus 10% fluctuationNote 2 : The frequency is different, the output speed is slightly different4. Power :30W5. Direction of rotation of the motor: CW Or CCW, Support Reversed. The direction of rotation of the motor can be controlled by a speed controller6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.7. The speed of the motor can be adjusted using the speed controller. 8. Low noise9. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.For example, Production line . Automatic washing machine . Household appliances . Smart device etc.The following is the parameter table of the motorFriendly reminderYour project load should not exceed rated torque of the motor, otherwise the life of the motor will be reducedThe following is a description of the quality materials and structures of this motor.1. Imported high-quality double ball bearing increases the load force of the motor and reduces friction. The seal of this bearing is strong and the lubricating oil is prevented from flowing out.2. The inner part of the motor is made of pure copper coil. It is more conductive, resistant to temperature and prolongs the life of the motor.3. Use magnet, complete and does not change the magnetic field, so that the performance of the motor is better, and the rotor does not get stuckThe size is for reference only the measurement will be slightly different,please pay attention

• Speed(RPM): 12v 1800rpm
• Origin: CN(Origin)
• Certification: ce
• Certification: ROHS
• Continuous current(a): 1.9 To 3.5A; According to the speed
