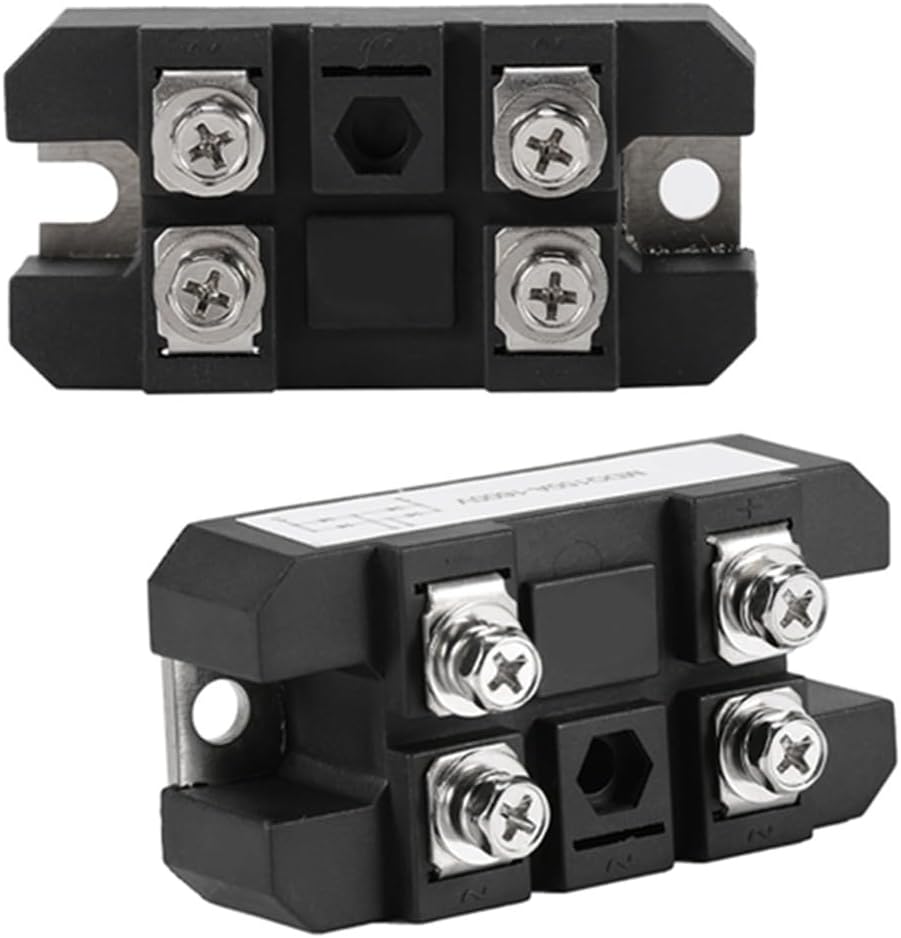

1600V Single Phase Diode Bridge Rectifier - 150A High Power Welded Structure for Automotive Alternator Systems Black 3.07 x 1.57 x 1.37in

Black single phase diode bridge rectifier for converting AC to DC power in automotive and industrial applications. This high power rectifier handles 150A output current with 1600V maximum reverse voltage ratingIdeal for alternator repair and power supply upgrades, this rectifier features welded construction for thermal stability during continuous run. The low forward voltage drop of 1.47V ensures efficient performance while the isolated terminals provide 2500VAC protectionSpecifications:Product name: MDQ150A/1600V single-phase rectifier bridgeOutput Current: 150AThree PhaseInput Positive Average Current: 50ARepetitive Maximum Reverse Voltage(VRRM): 1600VRepetitive Maximum Inverse Current(IRRM): 9mAIsolation Voltage(Viso): 2500VACIF(RMS):75MAVTM: 1.47VIFM:230ARJC:0.32℃/wPhase: Single PhaseTerminals: 4Maximum Junction Temperature: 150℃Size: 78x 40 x 35mm / 3.07 x 1.57 x 1.37"Color:BlackQuantity: 1Package Includes:1 x Bridge RectifierNote:1. Due to the difference between different monitors, the picture may not reflect the actual color of the item2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding

• High Power Rectification: This bridge rectifier is designed to converts AC to DC with 150A output current ideal for automotive alternators and power supply systems
• Robust Welded Structure: Our single phase bridge rectifier can withstands temperature variations and power cycling for consistent performance in demanding environments
• Efficient Heat Dissipation: Low 0.32°C/W thermal resistance and 1.47V forward voltage drop design ensure reliable use under high loads
• 1600V Voltage Rating: This rectifier can handles repetitive maximum reverse voltage up to 1600V with 2500VAC isolation for enhanced safety
• Complete Package: Includes 1pcs single-phase rectifier bridge measuring 78x40x35mm with 4-terminal configuration, suitable for converting AC to DC power in automotive and industrial applications
